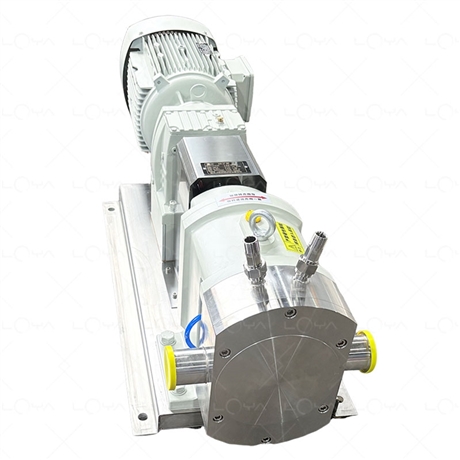

Sanitary cam rotor pump

Description :

Sanitary grade positive displacement cam rotor pump

Pharmaceutical and hygiene grade rotary pumps rely on a pair of synchronous reverse rotating cam rotors (mainly double bladed and three bladed) to form a closed volume chamber inside the pump chamber. During operation, the rotor rotates uncontrollably under the drive of the synchronous gearbox, creating a negative pressure vacuum environment on the feed inlet side and sucking the medium into the pump chamber; As the rotor continues to rotate, the sealed volume chamber gradually moves towards the discharge port, and the volume continuously decreases, generating squeezing thrust on the medium and smoothly discharging the medium from the pump body.

The entire conveying process is pulsation free, low shear, and has a constant volume. It can stably transport high viscosity, particle containing, and shear sensitive pharmaceutical media, and there is no retention inside the pump chamber, meeting the process requirements of CIP online cleaning and SIP online sterilization in the pharmaceutical industry, eliminating medium residue and cross contamination, and ensuring compliance throughout drug production.

Rotor structure

Adopting double leaf, three leaf, and four leaf cam rotor designs, the rotor surface is smooth without edges and corners, and there is no contact friction during operation, which not only reduces equipment wear but also achieves non-destructive transport of shear sensitive media such as proteins, vaccines, and biologics; The rotor is easy to disassemble and assemble without the need for professional tools, making it convenient for daily cleaning and maintenance.

Pump body structure

Adopting a quick opening jacket pump body design, there are no welding dead corners, grooves, or blind pipes, which complies with the design specifications for sanitary grade fluid equipment; Can be matched with heating/cooling jacket, suitable for the transportation of medical media that require temperature control, and supports forward and reverse operation, making it easy for pipeline cleaning and material reflux.

Drive system

External synchronous gearbox drive, with the gearbox isolated from the pump chamber to avoid lubricating oil contamination of the medium; Paired with a variable frequency motor, it can achieve precise flow regulation, adapt to the conveying speed requirements of different process flows, operate with low noise and vibration, and run stably and reliably.

Health compliance

The entire process follows the pharmaceutical GMP standards for design and production, with no hygiene blind spots, and can achieve CIP online cleaning and SIP online sterilization. It has passed 3A, FDA, EHEDG and other hygiene certifications, meeting the core requirements of sterile production and clean area operation in pharmaceutical workshops, and eliminating the risk of drug contamination.

Low shear non-destructive conveying

The rotor operates without contact, with extremely low shear force during the conveying process. It can retain the biological activity and component stability of sensitive media such as proteins, vaccines, and active agents intact. It is suitable for conveying pharmaceutical media that are paste like, viscous, and contain small particles, without damaging the material form and efficacy.

Strong adaptability to working conditions

It can transport a wide range of viscosities (from low viscosity drugs to high viscosity extracts and ointments), has strong self-priming ability, can complete suction without the need for pumping, can run idle without damaging the pump body, and is suitable for the diverse working conditions of intermittent and continuous production in the pharmaceutical industry.

Stable and durable operation

The rotor has no friction or wear, and the core components have a long service life; Smooth operation without pulsation, constant flow rate not affected by medium viscosity and pressure, high conveying accuracy, can meet the process requirements of precise batching and quantitative conveying in the pharmaceutical industry.

Easy to disassemble and maintain

Quick installation structural design allows for quick disassembly, cleaning, and replacement of rotors and seals without the need to dismantle pipelines, significantly reducing maintenance costs and downtime, and adapting to the production characteristics of high-frequency cleaning and sterilization in the pharmaceutical industry.

Sanitary grade positive displacement cam rotor pump

Production of active pharmaceutical ingredients: transportation and circulation of antibiotic solutions, pharmaceutical intermediates, active pharmaceutical extracts, acid-base reaction solutions, and organic solvents.

Biopharmaceuticals: Aseptic delivery of vaccines, protein solutions, antibody solutions, cell culture media, and fermentation media.

Traditional Chinese Medicine Pharmacy: The transportation of traditional Chinese medicine extracts, concentrated pastes, syrups, ointments, and medicinal pastes, suitable for the entire process of traditional Chinese medicine extraction, concentration, and filling.

Preparation processing: quantitative delivery and ingredient preparation of injection, oral liquid, ointment, suppository, and granule raw materials.

Aseptic filling: filling and conveying of sterile drugs, injection water, and cleaning solution, compatible with sterile production lines.

Auxiliary processes: CIP cleaning solution, SIP sterilization medium transportation, harmless transportation and treatment of pharmaceutical wastewater and waste liquid.
