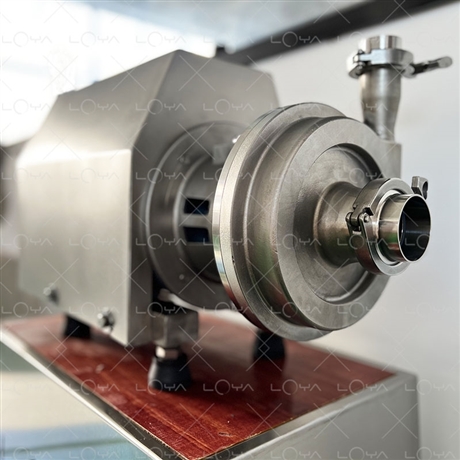

Sanitary centrifugal pump

Description :

Sanitary centrifugal pump for drug delivery

Sanitary grade centrifugal pumps rely on centrifugal force to achieve continuous fluid transportation, with a mild and shear free operation process, greatly protecting the active ingredients of the medicine solution

The motor drives the impeller inside the pump body to rotate at high speed, creating a negative pressure environment at the center of the pump chamber. The medium is sucked into the pump chamber through a sanitary inlet; The medium gains kinetic energy under the drive of the impeller blades and is thrown out radially along the impeller to the volute flow channel. The kinetic energy is converted into pressure energy in the flow channel and finally discharged stably through the outlet; The pump body adopts a self draining structure design, which can achieve the emptying of the medium, eliminate the breeding of residual microorganisms, and fully meet the sterile transportation requirements of pharmaceutical production.

Core Structure and Sanitary Design

1. Key component specifications

Impeller: Adopting an open/semi open precision structure, it has undergone high-precision dynamic balance verification above G6.3 level, running smoothly without vibration, low shear, and no grooves or dead corners, avoiding medium retention and effectively protecting active substances such as proteins and vaccines from damage.

• Pump casing: The streamlined snail shell is designed in an integrated manner, using seamless welding technology, with no threaded connection or additional gaskets. The bottom is equipped with a self draining port, which can empty any residue inside the pump and meet the requirements of CIP/SIP online cleaning and sterilization.

Mechanical seal: Standard sanitary grade single/double end mechanical seals, with silicon carbide (SiC) material as the sealing surface, high temperature resistance, wear resistance, no powder loss, zero leakage, and can withstand high temperature SIP sterilization at 121-135 ℃ to prevent external pollution. The sealing gasket is made of pharmaceutical grade materials such as EPDM, FKM, PTFE, etc., with no leaching and high temperature sterilization resistance, in compliance with the EU 1935/2004 food contact material standard.

• Connection interface: Adopting standard interfaces such as ISO 2852 quick release clamps, DIN 11851 sanitary flanges, and sterile threads, it is easy to disassemble and assemble without the need for professional tools, facilitating daily cleaning, maintenance, and verification, and adapting to the pharmaceutical industry standard pipeline layout.

2. Material and surface treatment

Overcurrent components: All are forged from 304/316L stainless steel, with a carbon content of ≤ 0.03%, strong corrosion resistance, no heavy metal precipitation, and comply with USP Class VI and FDA 21CFR standards. The material can be traced throughout the entire process.

Non overcurrent components: made of SUS304 stainless steel, balancing hygiene performance and structural stability. The outer surface is treated with matte sandblasting, free of burrs and easy to clean.

Surface roughness: The inner surface of the overcurrent component is treated with electrolytic polishing (EP), with a roughness Ra ≤ 0.4 μ m, no retention surface, and inhibition of microbial biofilm growth, meeting the requirements of high cleanliness level in pharmaceuticals.

The entire product design, production, and testing process complies with pharmaceutical GMP standards, and can provide a complete set of compliance documents such as material certification, cleaning verification reports, IQ/OQ/PQ installation and operation verification. It can easily pass inspections by drug regulatory authorities and assist pharmaceutical companies in compliant production.

2. Aseptic and clean assurance

Sanitary grade structural design with no dead space or residue, suitable for CIP online cleaning and SIP online sterilization, and capable of completing automated cleaning and sterilization processes without disassembling the pump body; The ultra smooth mirror polished inner surface effectively inhibits bacterial growth from the root and eliminates the risk of medium contamination.

3. Gentle conveying performance

Low shear operation characteristics, avoiding the destruction of active ingredients such as drugs, biologics, vaccines, etc., and ensuring the original characteristics of materials; Low operating noise (≤ 85dB) and minimal vibration, suitable for high demand production environments in pharmaceutical clean workshops. Variable frequency control can achieve variable flow and constant pressure delivery, meeting turbulence standards for pharmaceutical water systems.

4. Easy to maintain and long lifespan

Quick installation modular structure, easy and convenient disassembly and assembly, daily maintenance only takes 10-15 minutes, and replacement of vulnerable parts such as seals and impellers does not require professional personnel; 304/316L stainless steel material is acid and alkali resistant, corrosion-resistant, and suitable for frequent CIP/SIP cycles. The equipment has a long service life and low long-term maintenance costs.

Sanitary centrifugal pump for drug delivery

Typical application scenarios in the pharmaceutical industry

1. Pharmaceutical water system: purified water delivery, injection water (WFI) circulation, injection water distribution system

2. Preparation production: transportation of infusion, injection, oral liquid, syrup, tincture and other preparations

3. Biopharmaceuticals: culture medium, cell suspension, buffer solution, vaccine solution, antibody solution delivery

4. Production of active pharmaceutical ingredients: extraction, filtration, concentration, formulation, and transportation of intermediates

5. Cleaning and sterilization system: CIP cleaning solution and SIP sterilization solution are circulated and transported

6. Other hygiene scenarios: veterinary drug preparations, pharmaceutical excipients, sterile fine chemical fluid transportation

customized service

We can provide personalized customized services such as flow rate, head, temperature, material, interface, explosion-proof level, insulation jacket, sterile type, ultra-high purity type, etc. according to the specific production process of pharmaceutical companies, to adapt to special working conditions such as sterile workshops, highly active drugs, highly corrosive drugs, low-temperature transportation, etc., to meet the exclusive production needs of different pharmaceutical companies
