Yellow epoxy resin glass fiber board insulation high temperature resistant FR-4 glass fiber board processing customization
Category:
chemical industry/synthetic resin/epoxy resin
Model:
1000*2000 1220*2440
Brand:
Yibo
material:
Epoxy resin+fiberglass cloth
color:
Yellow/Translucent
grade:
FR-4 level
flame retardancy:
UL94-V0
Temperature resistance rating:
F-grade/H-grade (155 ℃ -180 ℃)
dielectric strength:
≥20 KV/mm
bending strength:
≥340 MPa
water absorption rate:
≤0.1%
surface state:
Double sided smooth/flat
Processing Technology:
Hot press lamination
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
material Epoxy resin+fiberglass cloth
color Yellow/Translucent
grade FR-4 level
flame retardancy UL94-V0
Temperature resistance rating F-grade/H-grade (155 ℃ -180 ℃)
dielectric strength ≥20 KV/mm
bending strength ≥340 MPa
water absorption rate ≤0.1%
surface state Double sided smooth/flat
Processing Technology Hot press lamination
Description :
This product is a high-performance yellow epoxy resin glass fiber laminated board (commonly known as FR-4 or epoxy glass fiber board), which is made of alkali free glass fiber cloth soaked in epoxy resin and cured by hot pressing. The board shown in the picture has a uniform color, a smooth surface, good mechanical and dielectric properties, and is suitable for use in humid environments and transformer oil.
This material is one of the most widely used insulation structural materials in the electronics and electrical industries. Its main features include:
1. Excellent insulation performance: It can maintain stable electrical insulation performance even in high humidity environments, with high voltage resistance and high leakage tracking index.
2. High strength and rigidity: It has extremely high mechanical strength, good bending and impact resistance, is not easily deformed, and is suitable for making load-bearing structural components.
3. Heat resistance and flame retardancy: Compliant with UL94-V0 flame retardant standards, it has excellent high temperature resistance and does not soften or decompose at high temperatures, ensuring the safe operation of equipment.
4. * * Good processing performance * *: Easy to perform mechanical processing such as punching, drilling, milling, sawing, etc., with good dimensional stability, and can customize various shaped parts according to customer drawings.

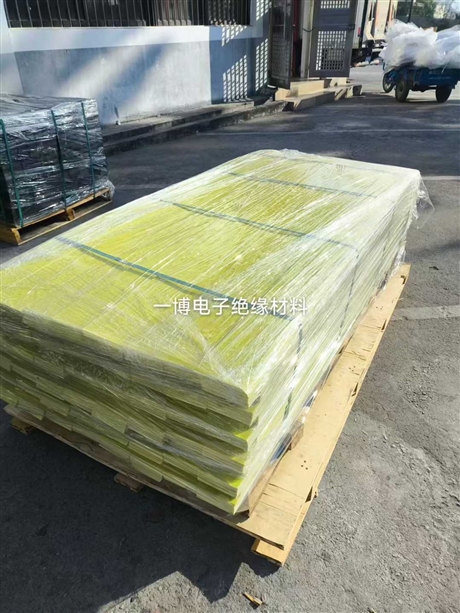

Typical application scenarios include: motor slot wedges, transformer insulation partitions, distribution cabinet insulation brackets, PCB testing racks, mold pads, carbon fiber board hot pressing molds, and insulation structure supports for various electronic devices. The product is packaged on wooden pallets and wrapped with stretch film for external fixation, effectively preventing bumps and moisture during transportation. It is suitable for large-scale industrial procurement and warehousing.
