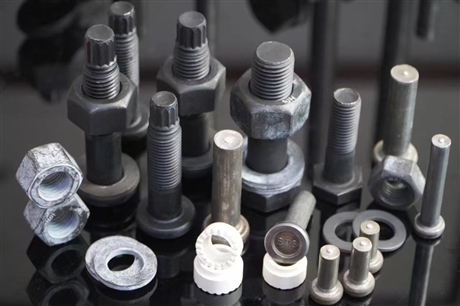

4.8 grade 8.8 grade steel structure torsion shear anchor bolts high-strength fasteners support customization

Description :

  Bolts are essential basic fasteners in mechanical connections, mainly used to firmly connect two or more components together and withstand tensile, shear, or composite loads. The 4.8 and 8.8 grade bolts mentioned in this article, as well as the torsion shear bolts and foundation bolts specifically designed for steel structures, are widely used in fields such as construction, bridges, mechanical equipment, and power facilities. 4.8 grade bolts are suitable for general static load connections, while 8.8 grade and above high-strength bolts are used for critical parts that require high dynamic loads or preload requirements. Steel structure torsion shear bolts are designed specifically for large steel structure nodes, achieving precise pre tension control by twisting the plum blossom head; Anchor bolts are used to secure equipment or structures in concrete foundations, ensuring overall stability. These bolt products solve the problem of connection reliability under different working conditions and are the core components in modern industry and construction.

  In terms of specifications and materials, 4.8 grade bolts are usually made of low carbon steel, with a tensile strength of not less than 400MPa and a yield ratio of 0.8; 8.8 grade bolts are mostly made of medium carbon steel or low-alloy steel and undergo quenching and tempering treatment, with a tensile strength of over 800MPa and a yield ratio of 0.8. The steel structure torsion shear bolts comply with the GB/T 1231 standard, and are equipped with large hexagonal nuts and washers. The materials are mostly 20MnTiB or 35VB, and have undergone galvanizing or Dacromet anti-corrosion treatment. The common forms of anchor bolts include L-shaped, J-shaped, and embedded plate type, with materials including Q235B, Q345B, etc. The diameter range is from M12 to M64, and the length can be customized according to the burial depth requirements. All products undergo strict quality testing, including hardness testing, tensile testing, and salt spray corrosion testing, to ensure compliance with national standards and industry specifications, and to meet the requirements of use in various harsh environments.

  When selecting, the bolt grade and type should be determined based on specific working conditions. For ordinary non load bearing structures or light load scenarios, 4.8 grade bolts have high cost-effectiveness and are easy to install; For high-strength connection parts such as steel structure beam column nodes and bridge splices, 8.8 grade or higher strength torsional shear bolts must be selected to ensure the stiffness and seismic performance of the nodes. The selection of anchor bolts should be based on the size of the equipment base, the depth of the concrete foundation, and force analysis, with special attention paid to the matching of thread length and anchorage length. If there are corrosive media in the environment, stainless steel materials or bolts with surfaces that have undergone heavy anti-corrosion treatment should be preferred. It should be noted that bolts of different grades cannot be mixed, and special electric wrenches are required for the construction of twist shear bolts. Ordinary wrenches cannot guarantee the accuracy of pre tension. When selecting, construction conditions and maintenance costs should be comprehensively considered.

  The reliability of bolted connections during installation and maintenance directly affects structural safety. When embedding anchor bolts, positioning templates should be used to fix them to prevent displacement during concrete pouring. Equipment installation can only be carried out after the foundation curing period is over. When installing steel structure torsion shear bolts, it is necessary to ensure that the contact surface is flat and free of oil stains. After initial tightening, the bolts should be tightened until the plum blossom head is broken, and secondary tightening is strictly prohibited. In daily maintenance, bolts should be regularly checked for looseness, rust, or breakage, especially on equipment with high vibration. It is recommended to install spring washers or use anti loosening nuts. If severe corrosion is found, it should be replaced in a timely manner to avoid failure caused by stress concentration. For bolt connections exposed outdoors, it is recommended to repair or replace the anti-corrosion coating every 3-5 years to extend the service life and ensure the long-term stability and safety of the connection structure.
