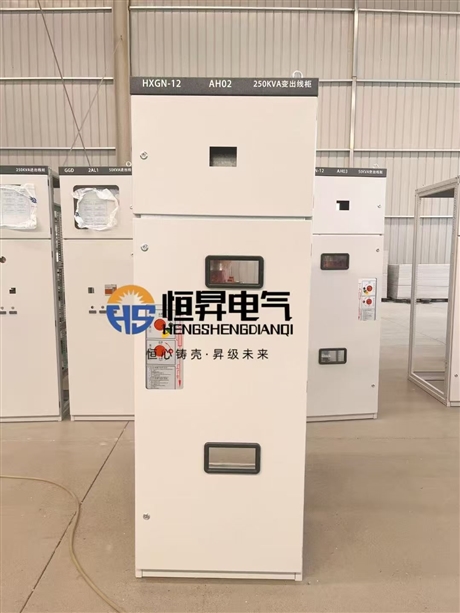

HXGN-12 type 250KVA transformer output cabinet Hengsheng electrical high voltage ring network cabinet body

Description :

This product is the HXGN-12 series high-voltage ring main unit produced by Hengsheng Electric. The specific model is AH02 250KVA transformer output cabinet. This cabinet is made of high-strength and high-quality cold-rolled steel plates or aluminum zinc coated plates that are CNC bent and welded. The structure is sturdy, the protection level is high, the surface is treated with electrostatic spraying, the color is uniform, and it has excellent anti-corrosion, anti rust, and insulation properties, suitable for various complex industrial environments.

The cabinet design follows the modular concept, with a reasonable internal space layout that facilitates the installation and maintenance of core components such as SF6 load switches, vacuum circuit breakers, fuses, etc. The front panel is equipped with a high-definition observation window, which can intuitively monitor the internal switch status and instrument readings; The operating mechanism panel is configured below, including opening and closing indicators, manual operation holes, and necessary interlocking devices to ensure the safety and convenience of operation. The top nameplate clearly identifies the "HXGN-12 AH02 250KVA Transformer Outgoing Cabinet", indicating its key node function as the transformer outgoing terminal, suitable for three-phase AC power systems with a rated voltage of 12kV and a frequency of 50Hz.

This product is widely used in urban power grid renovation, residential areas, industrial parks, high-rise buildings, substations and other places. It mainly undertakes the tasks of receiving, distributing and controlling electrical energy, and is particularly suitable as a terminal or contact switch cabinet for ring network power supply systems. Its compact structural design not only saves the floor space of the distribution room, but also improves the flexibility and reliability of the power supply system. Hengsheng Electric adheres to the concept of "Hengxin Casting Shell · Upgrading the Future", strictly controls every production process, ensures accurate cabinet size, tight door locks, and reliable grounding, and provides users with safe, stable, and efficient power transmission and distribution solutions. It is an ideal choice for modern smart grid construction.
