45 gallon intelligent battery charging explosion-proof cabinet smoke detection alarm automatic fire extinguishing warning exhaust double door double lock

Description :

　　The 45 gallon intelligent battery charging explosion-proof cabinet is a safe storage and operation unit designed specifically for charging electrochemical energy storage devices such as lithium batteries and lead-acid batteries. The core problem it solves is the risk of thermal runaway, hydrogen accumulation, and electrical short circuit that may occur during the charging process of the battery. Through a triple mechanism of physical isolation, active monitoring, and environmental control, accidents are contained in the bud. Typical operating conditions include centralized charging management in new energy vehicle maintenance workshops, data center backup power rooms, communication base station rooms, and industrial storage areas. This 45 gallon explosion-proof cabinet not only provides an effective capacity of 170L, but also integrates smoke detection, automatic fire extinguishing, forced exhaust, and leakage protection sockets, forming a closed-loop safety system that meets the dual regulatory boundaries of hazardous chemical storage and electrical operations.

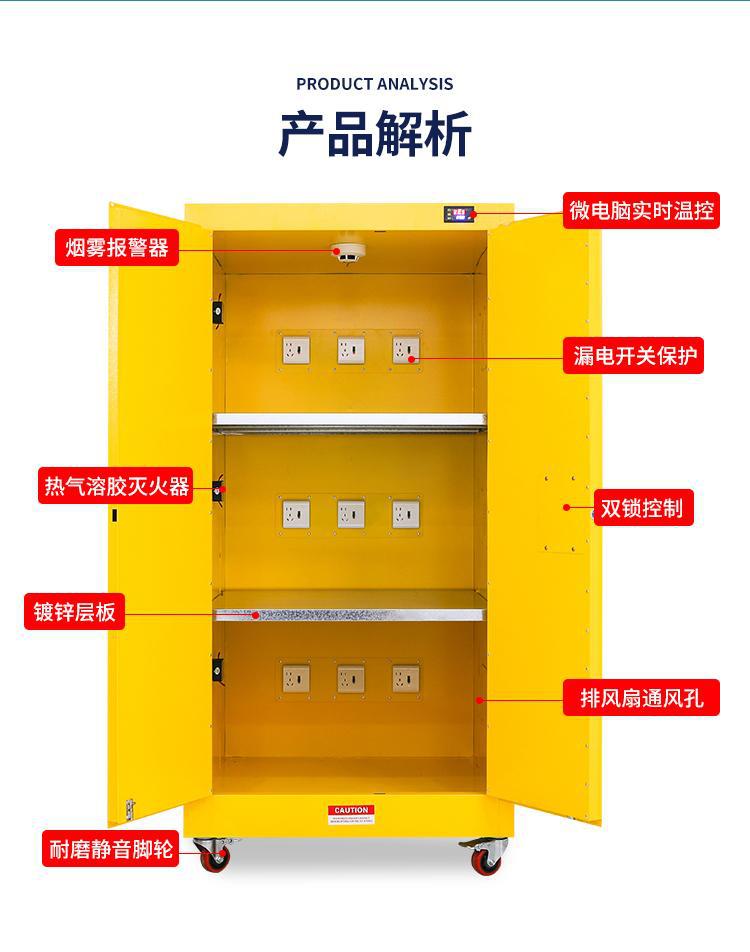

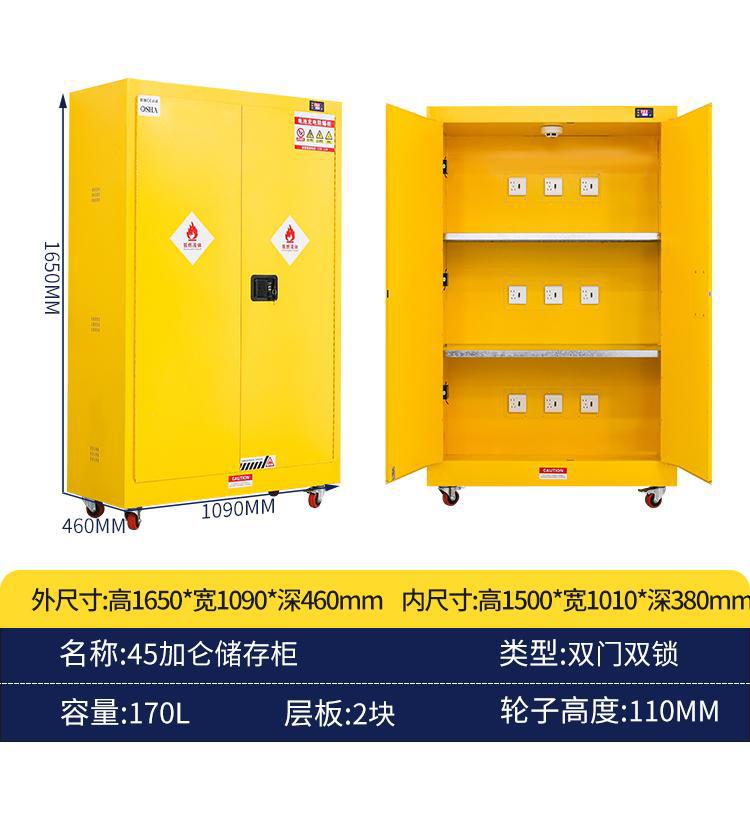

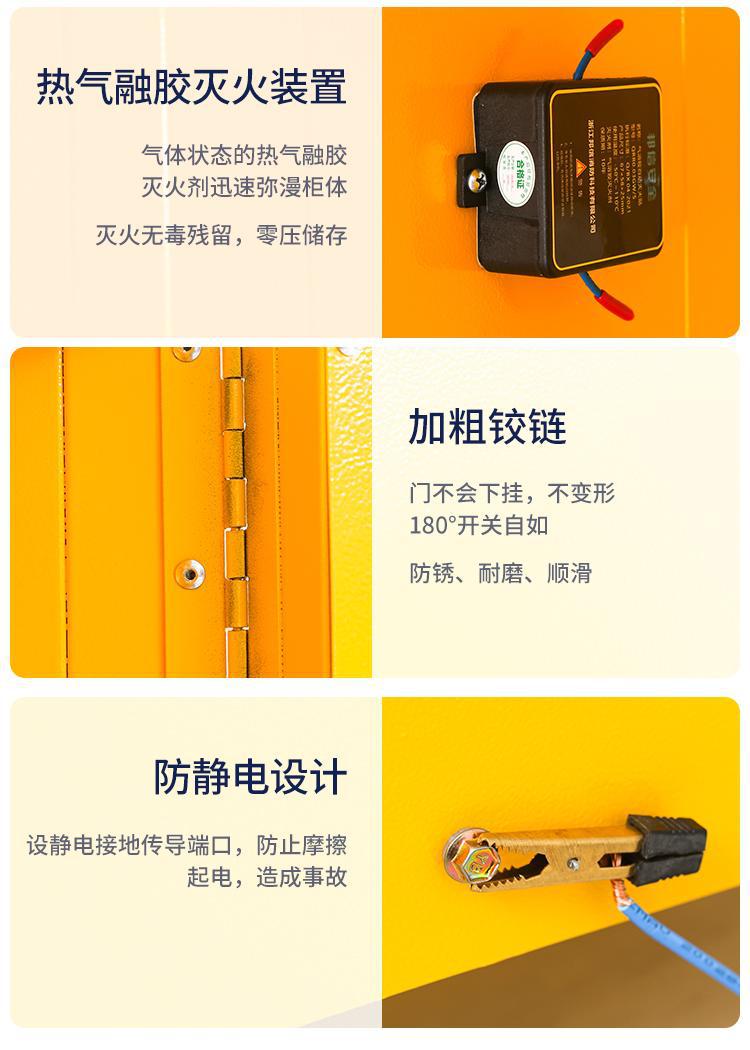

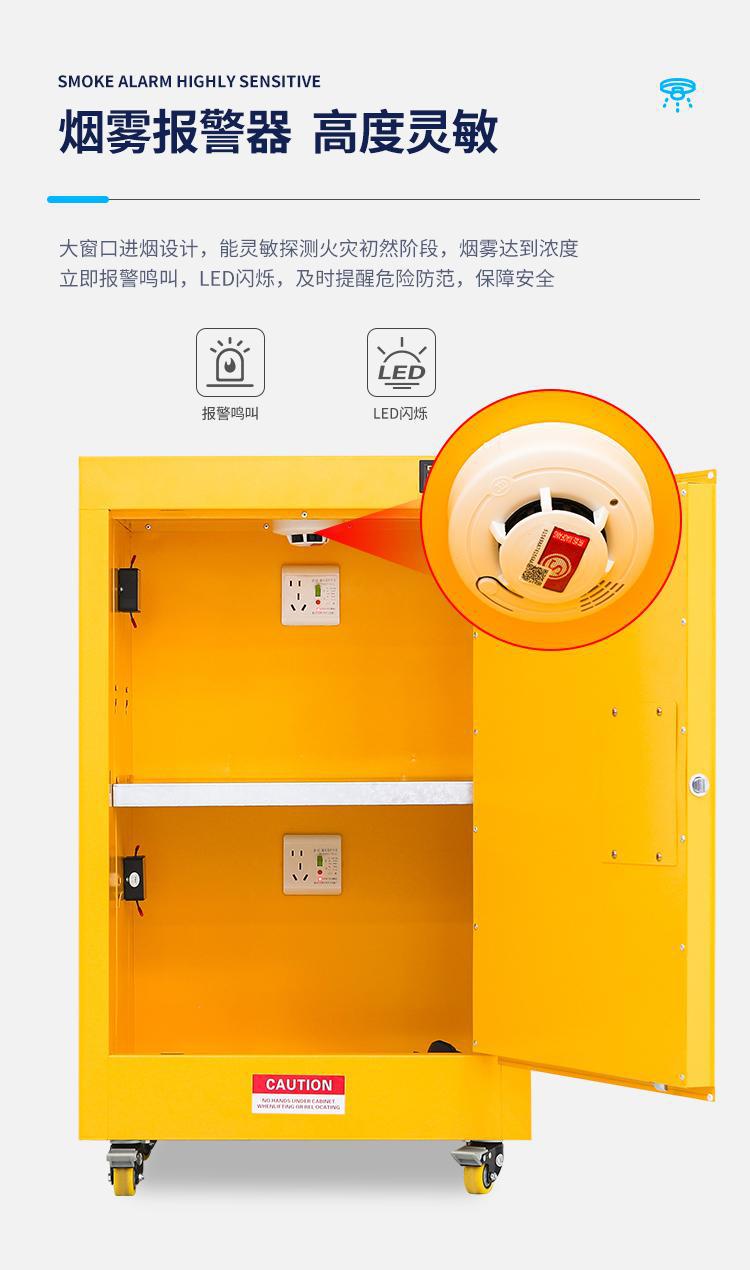

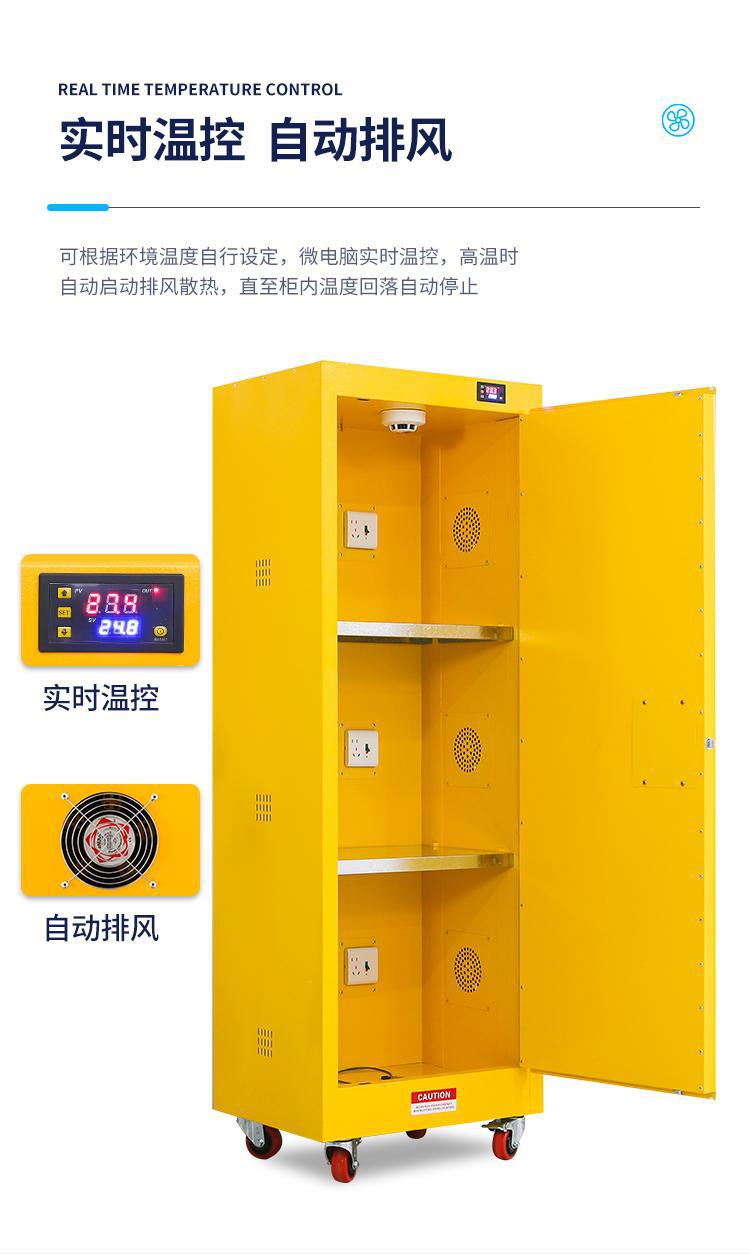

　　The external dimensions of the 45 gallon intelligent battery charging explosion-proof cabinet are 1650mm high, 1090mm wide, 460mm deep, and 1500mm high, 1010mm wide, and 380mm deep. It adopts a double-layer cold-rolled steel plate structure, filled with fireproof and heat-insulating materials in the middle, and the surface is treated with epoxy resin powder spraying, which is corrosion-resistant and easy to clean. The cabinet is equipped with double door and double lock mechanical locks to ensure that unauthorized personnel cannot open it; Internally equipped with 2 adjustable shelves, suitable for placing battery packs of different sizes. Install independent smoke detectors and automatic fire extinguishing devices (usually dry powder or aerosol modules) on the top, and integrate warning and exhaust systems on the side walls. When abnormal temperature or gas is detected, the fan will automatically start for ventilation. At the bottom, there are four universal wheels (with a height of 110mm), two of which have brakes for easy movement and positioning. All electrical interfaces are equipped with explosion-proof leakage protection sockets, with a rated current that meets the requirements of multiple simultaneous charging. The implementation standards refer to GB 15603 "General Rules for Storage of Commonly Used Hazardous Chemicals" and JB/T 6866 "General Requirements for Explosion proof Electrical Equipment".

　　The selection of a 45 gallon intelligent battery charging explosion-proof cabinet requires clear application scenarios: suitable for centralized charging of lithium-ion or lead-acid battery packs with a single voltage ≤ 48V and a capacity ≤ 200Ah, especially suitable for environments with high daily cycle charging and discharging frequency and long periods of unmanned operation. Not applicable scenarios include areas where the concentration of flammable and explosive gases continues to exceed the standard (requiring additional gas detectors), outdoor environments without rain shelters, and places that require frequent handling of oversized battery packs (such as forklift power batteries). Compared with ordinary chemical explosion-proof cabinets, the difference in this category lies in the built-in electrical control system - ordinary cabinets only perform passive isolation, while this 45 gallon explosion-proof cabinet has active response capability: the fire extinguishing agent spray starts within 3 seconds after the smoke detector is triggered, the exhaust system automatically operates when the temperature and humidity exceed the standard, and the leakage protection socket cuts off the power within 0.1 seconds when overloaded or leaking. The purchaser often asks if it is possible to customize the number of sockets, and the answer is that the standard configuration is 6 sets of five hole leakage protection sockets. If additional sockets are needed, it is necessary to confirm whether the wiring space inside the cabinet is allowed.

　　When installing a 45 gallon intelligent battery charging explosion-proof cabinet, ensure that the ground is levelLoad bearing capacity ≥ 500kg/m ², with at least 30cm of heat dissipation space reserved around, and exhaust outlets must not face densely populated areas or air intakes. Before the first use, it is necessary to test the sensitivity of the smoke detector, the pressure value of the fire extinguishing device, and the exhaust air volume (recommended to be ≥ 50m ³/h). Daily maintenance recommendations include checking the flexibility of the door lock once a month, cleaning the exhaust filter every quarter, verifying the function of the smoke detector every six months, and recording the battery charging log for traceability of abnormalities. Common fault diagnosis: If the exhaust system does not start, priority should be given to checking whether the wiring of the temperature control sensor is loose; If the leakage protection socket trips, it is necessary to check whether the connected charger has insulation aging or load overload; If there is a false alarm of smoke detection, it is mostly caused by dust accumulation, and compressed air can be used to blow the probe. When used correctly, a 45 gallon explosion-proof cabinet can effectively extend battery life by more than 30% and reduce fire risk by 90%, making it an indispensable infrastructure for modern energy management.
