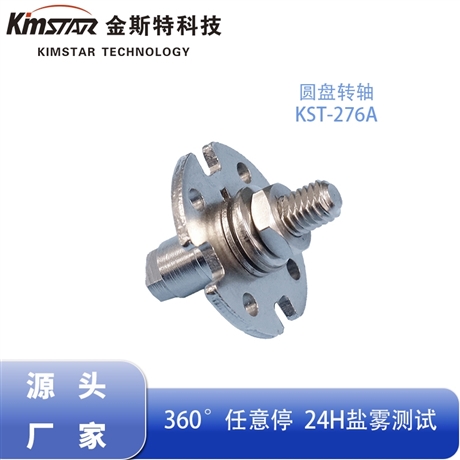

Disk can pass through the line and rotate 360 degrees freely, hinge hardware damper manufacturer

Description :

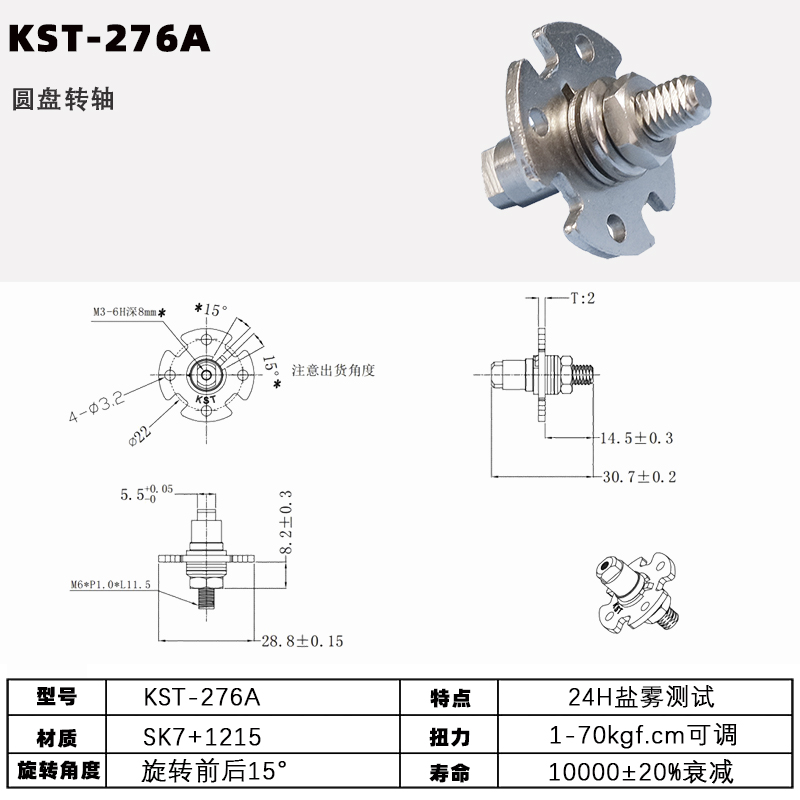

1、 Product design scheme: Circular hollow cable with 360 ° full range and exclusive structure for arbitrary stopping

In response to the core requirements of intelligent brackets, lightweight design of electronic devices, built-in wiring storage, multi angle free angle adjustment, and high-frequency rotation use, our factory adoptsFlat disc+hollow wire passing+360 ° global damping arbitrary stop design schemeDifferent from ordinary straight and solid shafts, it takes into account the extremely simple appearance, line protection performance, and angle positioning stability of the equipment, and is suitable for all types of small precision electronic devices.

Flat and invisible design of the disc: adopting an ultra-thin disc integrated structure, with a neat and compact shape, it can be perfectly embedded in the device base and bracket for internal installation, without occupying external space. It conforms to the current trend of lightweight, simple, and integrated design of smart devices, and is compatible with various metal and plastic device shells. It is also compatible with automated batch assembly, with seamless assembly and high-end overall texture.

Hollow wire protection structure: high-precision chamfered threading holes are reserved at the center of the rotating shaft, with smooth and burr free walls. The power, signal, and data wires of the equipment can be directly inserted and hidden, completely solving the problems of traditional equipment wire harnesses being exposed, tangled, repeatedly rotated, squeezed, worn, pinched, and broken, and the aging of the circuit is too fast. It comprehensively protects the internal circuit and greatly reduces the probability of equipment circuit failures.

360 ° infinite stop damping design: Built in precision multi-layer friction damping components, no angle limit, supporting equipment horizontal 360 ° free rotation and multi angle fine adjustment of up and down pitch. Damping output is linear and uniform, with gentle and smooth rotation, no jamming, no mechanical hard impact, and precise self-locking upon release. There is no rebound, shaking, or falling, and the device can be fixed at any angle to accurately meet the angle positioning needs of equipment viewing, debugging, display, storage, and other multiple scenarios.

The product has strong adaptability and can be customized according to equipment load-bearing capacity, wire thickness, installation space, and tactile requirements, including disc diameter, threading hole diameter, damping torque, and installation hole specifications. It fully meets the needs of new product development, old model upgrades, private mold upgrades, and large-scale production matching.

2、 Material construction: Industrial grade precision alloy wear-resistant wire protection, rust proof, fatigue resistant and non deformable

Combining the characteristics of daily high-frequency rotation, normalized angle adjustment, multi scenario use in home office, and humid and dusty working conditions of precision electronic equipment, this disc can be selected through line damping shaft selectionHigh purity industrial grade carbon steel/environmentally friendly stainless steel alloy substrateThe material is dense and uniform, with high toughness and no harmful substance precipitation, fully meeting the environmental protection material standards for consumer electronics hardware. It has excellent wear resistance, deformation resistance, fatigue resistance, oxidation resistance, and corrosion resistance, solving common quality problems such as easy deformation of ordinary shafts, rapid torque attenuation, loosening noise, rusting and lagging, and cutting and grinding from the root.

Adopting the integrated forging and forming process, the disc body and shaft structure have no splicing or weak welding points. The overall structural strength is high, and the force is uniform and stable. It can withstand the fatigue loss of equipment high-frequency rotation, multi angle adjustment, and static load-bearing for a long time, and is not easy to bend, deform, or collapse. The threading hole is processed with CNC micro level precision grinding and chamfering, and the inner wall is rounded and smooth, completely preventing wire cuts, wear, and extrusion fractures, ensuring the safety of the circuit in all aspects.

The core damping friction disc adopts high-frequency quenching and hardening+precision grinding technology, which accurately controls the clearance between components. The 360 ° global damping output is uniform and stable, without any looseness, tightness, blockage or jamming phenomenon. The long-term rotation and angle adjustment feel is uniform and the positioning is precise. The surface adopts a multi-layer precision electroplating+passivation anti rust strengthening process, with a thick and dense coating, strong adhesion, excellent dust, moisture, oxidation, and corrosion resistance, and resistance to daily friction without peeling, fading, or rusting. It is suitable for stable use in various indoor scenarios for a long time.

3、 Core Performance Guarantee: Salt Spray Testing+Ten Thousand Fatigue Tests, Precise and Strict Quality Control

This series of disc-shaped damping hinges is strictly produced according to the industrial standards of precision electronic components. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian shafts, suitable for the long-term high-frequency use needs of high-end intelligent devices.

1. Industrial salt spray corrosion resistance test: The product has passed the standard industrial salt spray corrosion resistance test, and has no rust, oxidation white spots, coating peeling, or jamming failure after long-term testing. It effectively resists air humidity, dust erosion, daily environmental oxidation, and eliminates problems such as shaft corrosion, jamming, rotation loss, and appearance aging. It has excellent weather resistance and is stable and rust free for long-term use.

2. Ten thousand rotation fatigue test: After tens of thousands of 360 ° full range rotations, multi angle hovering, and repeated angle adjustment fatigue tests, the disc structure has no deformation, the threading holes have no wear, the torque attenuation is extremely low, the positioning accuracy is constant, and long-term high-frequency use does not loosen, fall, or produce abnormal noise, greatly reducing the after-sales failure rate and operation and maintenance costs of electronic brackets and smart devices.

3. Invisible wiring+wire protection and damage prevention: The exclusive hollow smooth threading structure achieves minimalist invisible wiring of equipment, eliminates wire entanglement and wear, balances aesthetics and practicality, and effectively extends the service life of equipment and wiring harnesses.

4. Silent and Smooth+Precise Locking: Precise gap matching design, gentle and silent rotation adjustment, no mechanical friction noise, suitable for high-end digital devices with exquisite texture; 360 ° global parking, angle locking at will, precise positioning without deviation.

4、 Product Utilization Value: Improving Quality and Reducing Costs, Empowering Differentiated Upgrades of Intelligent Devices

This disc can be widely adapted to wire damping shaftsTablet stand, mobile live streaming stand, smart display base, small flip electronic device, portable digital adjustment device, intelligent industrial control small standIt has extremely high practical value, quality value, and commercial supporting value.

Practical value: The ultra-thin structure of the disc is suitable for the lightweight design of the device, and the invisible wiring solves the pain points of the messy body. The whole machine is simple and high-end; The anti pinch and anti-wear wire structure eliminates damage and faults in the circuit, making it safer to use; 360 ° free rotation+precise arbitrary stop function, completely solving the problems of bracket falling, angle deviation, and angle adjustment lag. The silent and smooth adjustment feel greatly improves the user experience. Quality value: industrial grade precision materials, wear resistance, aging resistance, high frequency fatigue resistance, through salt spray and ten thousand fatigue double rigorous tests, effectively reduce equipment looseness, abnormal noise, rust, damping failure, angle offset and other after-sales problems, significantly extend the service life of the equipment, reduce the cost of repair, operation and maintenance of manufacturers. Commercial value: The product has strong universality and is compatible with the vast majority of small smart digital stands and flip electronic devices on the market, simplifying the selection of accessories for manufacturers and reducing inventory pressure; Supporting customized non-standard dimensions, torque, and aperture, helping manufacturers optimize the internal structure of equipment, enhance the overall precision and stability of the machine, and create differentiated products with invisible wiring, smooth durability, and high-end durability, effectively enhancing the core competitiveness of the terminal equipment market.

5、 Manufacturer introduction: Disc can pass through the line damping shaft source factory one-stop customized matching

Our factory is a professional manufacturer specializing in the research and development, as well as the production of disc-shaped damping shafts and precision electronic damping hinges. We have been deeply involved in the field of precision damping hardware for many years, focusing on the research and mass production of various intelligent digital brackets and damping accessories for small electronic flip devices. We are deeply familiar with the core technical standards of lightweight assembly, invisible wiring, silent and smooth operation, long-term stable stop, rust prevention and durability of precision equipment. The factory has a full chain production system including independent research and development, precision machining, comprehensive testing, and rapid batch delivery. It provides direct supply from the source without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

Our R&D and customization capabilities are mature, and we continuously iterate our processes to address industry pain points such as wire clamping and grinding, uneven damping, long-term looseness, corrosion, and inaccurate positioning for ordinary disc shafts. We can customize the disc size, threading hole diameter, damping torque, and installation hole position according to customer equipment load capacity, wire specifications, installation space, and torque requirements, and quickly respond to customer new product development, product redesign, and large-scale production matching needs.

The factory has a strict and standardized quality control system, equipped with precision machining equipment and a complete set of professional testing instruments specifically for disc shafts. It strictly follows the closed-loop quality control process of raw material quality screening, integrated molding, hole precision grinding, hardening and strengthening, damping calibration, salt spray anti-corrosion testing, 10000 rotation life testing, and finished product full inspection. It strictly controls the dimensional accuracy, rotation smoothness, torque stability, wire protection effect, and anti-corrosion performance of each batch of products to ensure uniform quality of batch products and adapt to high-end precision electronic equipment matching standards.

Our service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop technical guidance for after-sales installation. We provide high-precision, high wire protection, high stability, and high durability disc damping shaft matching solutions for major digital and intelligent equipment manufacturers.

if neededContact: Manager Guo 17375546868
