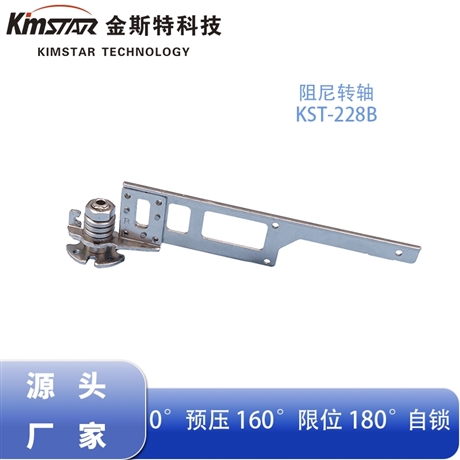

Camera bracket base, disc damping shaft, industrial electronic equipment damper source manufacturer

Description :

1、 Axis design scheme: disc base dedicated structure, suitable for pan tilt rotation and industrial equipment working conditions

In response to the core requirements of high-frequency 360 ° rotation, precise load-bearing positioning, anti shake and no displacement of photography stand bases, as well as the flipping and angle adjustment of industrial electronic equipment bases and long-term static fixation, our factory adoptsIntegrated design scheme of disc type heavy-duty dampingDifferent from ordinary micro straight axis shafts, the disc friction damping structure is increased to enhance load-bearing and locking performance, perfectly adapting to the use conditions of large-area force, uniform damping, and stable locking of base equipment.

Exclusive optimization of photography stand: adopting distributed disc damping friction pair, 360 ° full range rotation damping is uniform and smooth, without jamming or looseness, supporting multi angle fine adjustment of cameras and camera gimbals, panoramic rotation positioning, and releasing lock at any angle, effectively eliminating problems such as base displacement, equipment shaking, and image offset during shooting, meeting the precise use requirements of still life shooting, panoramic framing, and multi angle debugging. The rotation is silent without jerking, greatly improving the stability of photography equipment use.

Exclusive optimization for industrial electronic equipment: Strengthen the load-bearing and protective structure of the base, improve overall torsional and compressive performance, adapt to various industrial displays, small industrial control equipment, intelligent electronic equipment base flipping, angle adjustment, and body rotation working conditions, smooth opening and closing rotation buffering, no hard impact, can accurately fix the equipment usage angle, avoid long-term static displacement and loosening of the equipment, and have a closed structure design that is dust-proof and debris proof, suitable for normal use in multiple scenarios such as workshops and offices.

The product has a regular and fitting disc structure, suitable for various bracket bases, embedded and exposed installation of equipment chassis, compatible with metal and plastic shell assembly, and suitable for automated batch assembly production. We can customize damping torque, disc specifications, shaft dimensions, and installation hole positions according to the load-bearing capacity, rotation stroke, usage scenarios, and anti-corrosion requirements of the equipment, fully meeting the needs of new product development, private mold customization, and large-scale production matching for photography equipment and industrial electronic equipment.

2、 Material construction: Industrial grade high-strength alloy, heavy-duty wear-resistant, fatigue resistant and non deformable

Considering the harsh working conditions of long-term load-bearing rotation of the photography stand, high-frequency angle adjustment of industrial equipment, and multi environment use, this disc damping shaft is carefully selectedHigh purity industrial grade thickened carbon steel and stainless steel alloy substrateAfter multiple processes of raw material purification, impurity removal, and densification, the material has high density, sufficient rigidity, and excellent toughness, with super strong resistance to deformation, wear, and fatigue. It solves the quality problems of insufficient load-bearing capacity, easy deformation, rapid torque attenuation, abnormal rotation noise, and rusting caused by moisture in ordinary base shafts from the root. The material is environmentally friendly and compliant, meeting the standards for hardware materials in photography equipment and industrial electronic equipment.

Adopting the integral forging and integral forming process, the disc base and the shaft body have no splicing or weak welding points, and the overall force is uniform. The structural stability is extremely strong, and it can withstand the fatigue loss of the self weight of photography equipment, high-frequency rotational friction, and repeated angle adjustment of industrial equipment for a long time. It is not easy to bend, collapse, or loosen and fail. The core disk damping friction surface undergoes high-frequency quenching hardening and CNC micro level precision grinding technology, resulting in a smooth and uniform friction plane with precise and controllable clearance. The overall rotational damping output is unified and stable, without any jamming, obstruction, or offset shaking. The surface adopts multi-layer industrial plating, passivation and anti rust strengthening process. The coating is thick, dense, and has strong adhesion. It has excellent dust-proof, moisture-proof, anti-corrosion, and anti-aging properties, and is suitable for long-term use in indoor and outdoor, workshop, office, and other scenarios.

3、 Core performance advantages: Salt spray testing+10000 load tests, industrial grade stability and durability

This series of disc base damping shafts are strictly produced according to industrial precision accessory standards. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian shafts. It is suitable for the long-term stable use of photography equipment and industrial electronic devices.

1. Professional salt spray anti-corrosion testing: The product has passed the standard industrial salt spray test and has no rust, oxidation, coating peeling, or white spot corrosion after long-term testing. It has excellent moisture resistance, rust prevention, and corrosion resistance, and can effectively resist water vapor oxidation and slight corrosion in outdoor shooting, humid workshops, and dusty environments. It completely solves the problems of rusting, jamming, appearance aging, and failure of the base shaft after long-term exposure.

2. Ten thousand load bearing rotation test: After tens of thousands of full load bearing 360 ° rotations and hovering positioning fatigue tests, the disc structure has no deformation, extremely low torque attenuation, constant positioning accuracy, and long-term high-frequency rotation without looseness, displacement, abnormal noise, or falling. Its performance is long-lasting and stable, greatly reducing the equipment's after-sales failure rate and maintenance costs.

3. Accurate and arbitrary stopping and locking performance: The disc is designed with a large area of damping friction, ensuring even and stable locking force. It can achieve 360 ° infinite hovering at any angle, and can be fixed immediately when released without rebound or offset. It perfectly adapts to the precise shooting of photography and the angle fixing needs of industrial equipment.

4. Silent and smooth rotation experience: With precision flat matching technology, the rotation process is gentle and quiet, without mechanical hard friction noise. It not only meets the delicate texture of high-end photography equipment, but also adapts to the normal silent operation needs of industrial equipment.

4、 Product utilization value: Improving quality and reducing costs in multiple scenarios, empowering equipment differentiation and upgrading

This disc damping shaft is widely compatibleCamera stand, camera gimbal base, desktop photography rotating stand, industrial display base, small industrial electronic equipment, intelligent terminal rotating chassisWaiting for equipment with ultra-high practical value, quality value, and commercial matching value.

Practical value: The disc heavy-duty structure has stable load-bearing capacity, 360 ° smooth rotation and precise arbitrary stopping, making it easy to achieve multi angle shooting and equipment multi angle debugging, completely solving pain points such as base displacement, equipment shaking, and angle deviation; The characteristics of anti-corrosion, dustproof, silent and wear-resistant make it suitable for long-term high-frequency use in multiple scenarios. It is easy to operate and stable, greatly improving the user experience. Quality Value: Supported by industrial grade precision materials and mature processes, it is resistant to wear, deformation, and fatigue. Through rigorous testing with salt spray and ten thousand load capacity, it effectively reduces after-sales problems such as equipment looseness, lagging, rust, and failure, greatly extending the service life of photography equipment and industrial electronic equipment, and reducing the cost of enterprise operation and repair. Commercial value: The product has strong universality, with a rotating shaft that can adapt to photography stands and industrial electronic multi category equipment, simplifying the selection of accessories for manufacturers and reducing stocking pressure; Support standard spot goods and non-standard customization, assist manufacturers in optimizing equipment base structures, improving the precision texture and product grade of the whole machine, creating stable, durable, and high-precision product differentiation advantages, and effectively enhancing the core competitiveness of the terminal equipment market.

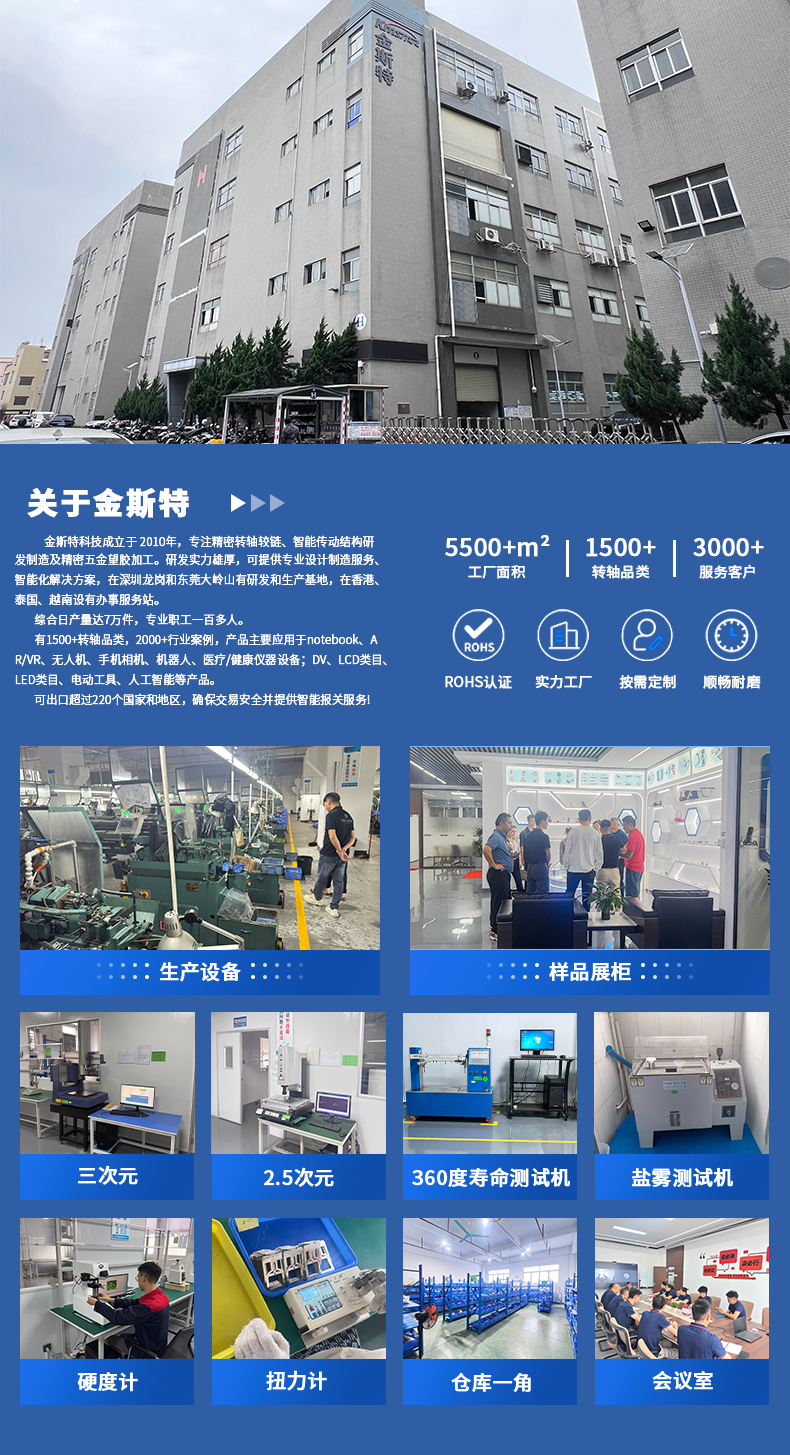

5、 Manufacturer introduction: Disc damping shaft source factory, focusing on customized heavy-duty rotating parts

Our factory is a professional manufacturer specializing in the research and production of damping shafts for camera disc bases and industrial electronic equipment rotation dampers. We have been deeply involved in the field of heavy-duty precision damping hardware for many years, focusing on the research and mass production of supporting base shafts for photography equipment and industrial electronic equipment. We are familiar with the core technical requirements of high load-bearing capacity, stable rotation, strong corrosion resistance, and long service life for base accessories. We have an independent research and development, precision processing, full inspection, and fast delivery full chain production system. Our factory provides direct supply without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

We have strong R&D and customization capabilities, continuously optimizing structural processes to address industry pain points such as insufficient bearing capacity of the base shaft, rotational lag, long-term displacement, susceptibility to corrosion, and rapid torque decay. We can customize disc specifications, damping torque, shaft parameters, and installation hole positions based on customer equipment bearing specifications, base size, rotation angle, usage conditions, and anti-corrosion levels, and quickly respond to customer needs for new product development, product upgrades, and large-scale production support.

The factory has a strict and standardized quality control system, equipped with specialized precision machining equipment for disc accessories and a complete set of professional testing instruments. It strictly follows the closed-loop quality control process of raw material quality screening, integrated molding, hardening treatment, damping precision debugging, salt spray anti-corrosion testing, 10000 load life testing, and finished product full inspection. Each batch of products strictly controls dimensional accuracy, rotational smoothness, load stability, anti-corrosion performance, and torque consistency to ensure uniform quality and performance standards for bulk products.

The service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sample installation, providing pre-sales working condition selection matching, structural scheme optimization, follow-up throughout the production process, and one-stop after-sales installation technical guidance. We provide high load-bearing, high-precision, high stability, and high weather resistant disc damping shaft matching solutions for major photography equipment and industrial electronic equipment manufacturers.

if neededContact: Manager Guo 17375546868
