Henan Longmen Frame Stacking Machine - Frame Stacking Machine Processing - Zhongyilong Machinery
Category:
mechanical equipment/Packaging equipment/Stacker
Model:
zyl116
Brand:
Zhongyilong Machinery
model:
zyl116
type:
production line
Is there a tray available:
trayless
Processing & Customization:
yes
power:
fifteen
power supply voltage:
three hundred and eighty
Overall dimensions:
two thousand
weight:
nine hundred and fifty
Place of Origin:
Henan
manufacturer:
Zhongyi Long
Retail Price
120,000.00USD
重量
kg
- Product Description
-
model zyl116
type production line
Is there a tray available trayless
Processing & Customization yes
power fifteen
power supply voltage three hundred and eighty
Overall dimensions two thousand
weight nine hundred and fifty
Place of Origin Henan
manufacturer Zhongyi Long
Description :

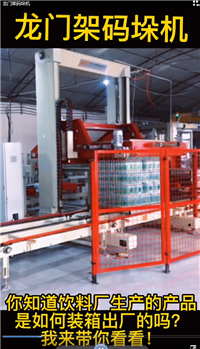

Characteristics of side push gantry palletizing equipment The side push gantry palletizer is one of the fully automatic palletizers, which is a highly automated and structurally simple palletizer.
The gantry side push palletizer groups the products according to the predetermined method, and then stacks the entire layer of products layer by layer on the pallet. Usually used as a follow-up equipment for packaging lines to improve production capacity.
Advantages of Side Push Longmen Stacking Machine Equipment
1. Low level palletizing type. The design concept of layer by layer stacking makes the movement lighter and smoother, with low power consumption.
2. The stacking method and adjustment of the palletizer are convenient, simple, and can be carried out on the human-machine interface. Several stacking methods can be completed without replacing stacking parts due to faults.
Specification table of side push gantry palletizer
model
LW-PZ30
processing power
20-30 boxes/minute
pallet size
L1200*W1200*150(mm)
palletizing method
low position
Stacking height
≤2000mm
Device dimensions
L8400*W4700*H3700(mm)
power supply
380V/3P 11KW
Air consumption
210L/min 6KG/cm2
Product conveyor belt height
650mm
Height of tray conveyor belt
650mm
Electric pallet load capacity
1500KG
AfterSalesService :
Key words:- Longmen frame palletizing machine
