Henan Zhongyilong - Side push packing machine - High speed packing machine manufacturer

Description :

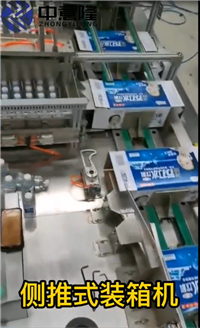

　　Side push packing machine

　　■ Introduction: The side pushing boxed product packing machine is a kind of equipment that automatically loads small packed boxes into transport boxes. The machine can automatically arrange, stack and push packages into open cartons (corrugated paper lines, plastic boxes, foam boxes, trays, etc.) according to the requirements of product packing quantity. All actions used are automatically completed without manual intervention; The entire system is integrated into one framework, with a compact structure; This machine has PLC+touch screen control, equipped with missing box alarm, no box shutdown without packing, safety door of the whole machine equipment, etc., which greatly facilitates operation, management, deceleration of production personnel and labor intensity. It is an essential equipment for automated large-scale production.

　　Scope of application: Suitable for automatic packing of various specifications of box products and various rectangular and cubic products.

　　Product Introduction: This side push boxing machine adopts a desktop design, multiple column pre palletizing mechanism, imported electrical components for the electric control system, PLC control system, human-machine interface, and servo motor+pneumatic drive for the main mechanism. It has the characteristics of stable operation, convenient mold replacement, and simple operation.

　　Application industry: mainly used for automatic packaging of boxed products in the food, pharmaceutical, and electronics industries.

　　Side push packing machine

　　This machine is suitable for single box high-speed palletizing and packing lines.

　　Before packing, the equipment automatically flips and positions the cardboard boxes to ensure smooth packing without any concerns about box jamming.

　　Widely applicable and capable of packaging products of various specifications.

　　Non standard customization can be made according to user requirements.

　　Technical Specifications

　　Suitable for cardboard boxes L350-580 * W250-400 * H180-400mm

　　Carton height 600mm

　　Feed height 850mm

　　Power supply 220V/50HZ

　　Power 2.5KW

　　Air pressure 0.6-0.8Mpa

　　Conveyor size L1500 * W200 * H850mm

　　Equipment weight 700KG
