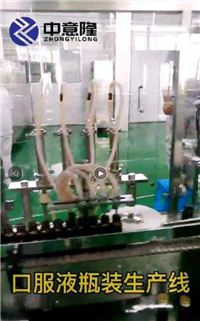

Zhongyilong 10ml Traditional Chinese Medicine Oral Liquid Filling Production Line Small Bottle Syrup Processing Equipment Easy to Operate

Description :

　　The 10ml traditional Chinese medicine oral liquid filling production line small bottle syrup processing equipment is a new type of automatic production line developed by our company based on absorption technology. It is particularly suitable for filling small and medium dose liquids and various circular bottle caps, pump caps, nozzle caps, duckbill caps, and spray gun lock caps. Suitable for filling and capping various circular and irregular bottles of different materials and specifications. Microcomputer self-priming peristaltic pump for automatic quantitative and pneumatic positioning filling (lifting filling structure can also be omitted as needed). It has the advantages of measuring, smooth filling, simple operation, high-speed packaging, and capping.

　　The 10ml traditional Chinese medicine oral liquid filling production line small bottle syrup processing equipment consists of three single machines: oral liquid bottle ultrasonic washing machine, high-temperature sterilization tunnel oven, and oral liquid filling rolling machine. It is divided into three working areas: cleaning, drying sterilization, and filling and capping. It can also be equipped with bottle tray, rubber stopper aluminum cap cleaning machine, labeling machine and other equipment. Each individual machine has its specific functions, which can be used independently or in conjunction with production.

　　Technical parameters of 10ml traditional Chinese medicine oral liquid filling production line, small bottle syrup processing equipment, oral liquid bottle ultrasonic washing machine:

　　1. Scope of application: 10-50ml oral liquid bottle, yellow round bottle

　　2. Production capacity: 200-400 bottles/min without saline water pressure: 0.3-0.4MPa

　　3. Working voltage: 380V 50HZ (three-phase four wire system)

　　4. Power consumption: 4KW (ultrasonic power 1KW)

　　5. Dimensions: 2500 × 900 × 1100

　　6. Compressed air pressure: 0.3MPa

　　7. Ultrasonic frequency: 28kHz

　　8. Gas consumption: 1.5m3/min

　　9. Clarity: 98%

　　10ml Traditional Chinese Medicine Oral Liquid Filling Production Line Small Bottle Syrup Processing Equipment BYF Type Twelve (Ten, Eight) Head Liquid Filling and Sealing Machine

　　This machine meets the requirements of "GMP" and is made of 304 stainless steel material. The part in contact with the liquid medicine is made of 316 stainless steel material. It is suitable for filling, capping, and sealing 5ml~30ml oral liquid straight tube bottles. It is the main machine in the oral liquid filling production line, and its speed matches the overall production speed of the line. Imported frequency converter with stepless speed regulation, capable of automatic bottle feeding and tracking filling without dripping or foaming, and no filling without bottles; The metering pump is made of 316 stainless steel, which can adjust the loading capacity and is easy to disassemble and clean; The capping speed is synchronized with the filling speed, and it can automatically send caps on top, without dropping or capping due to missing bottles; The processes of rolling, sealing, and forming are completed in one machine, saving floor space and having a high degree of automation.

　　The machine platform is also equipped with a unique trapezoidal bottom cleaning tank, which has no dead corners and is easy to clean residual liquids.

　　The 10ml traditional Chinese medicine oral liquid filling production line small bottle syrup processing equipment is composed of an ultrasonic cleaning machine and an MSH-500 high-temperature sterilization tunnel oven to form a washing, drying, and sealing linkage production line, achieving full automation of the production process.

　　Main technical parameters of the small bottle syrup processing equipment for the 10ml traditional Chinese medicine oral liquid filling production line:

　　throughput:

　　Twelve heads: 300 bottles per minute;

　　Ten heads: 200 bottles per minute;

　　Eight heads: 160 bottles per minute

　　Applicable bottle specifications: 5ml~30ml oral liquid straight tube bottle (other specifications can be customized)

　　Loading error: in accordance with the regulations of the National Pharmacopoeia

　　Bottle breakage rate: ≤ 1%

　　Cap pass rate: ≥ 99%

　　Power: 2KW, power supply: 380V 50Hz three-phase five wire system

　　Dimensions: 2500 × 1000 × 1700mm

　　Weight: 980kg

　　The main configuration of the small bottle syrup processing equipment for the 10ml traditional Chinese medicine oral liquid filling production line is as follows:

　　Touch sensitive computer panel control

　　Variable frequency drive: using Mitsubishi products

　　Electric motor: using ABB products

　　Thermal relay, relay: using Schneider products

　　Photoelectric switch: using products from Shanghai Zhonghu Electronics Research Institute
