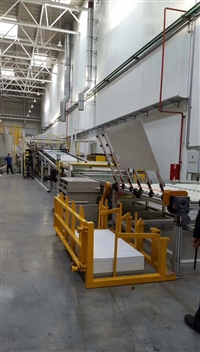

ABS board extrusion production line, Jinwei refrigerator board production line

Description :

　　ABS, HIPS high-yield sanitary ware board, refrigerator board extrusion production line

　　In recent years, our conventional extruders and production lines have become popular in both domestic and international markets due to their cost-effectiveness. At the same time, our company continuously innovates in the field of advanced extrusion technology and has developed high-yield extruder equipment. In the past, the main way to increase the output of extruders was to increase the diameter of the screw. Although the diameter of the screw increases, the amount of material extruded per unit time will also increase. But the extruder is not a screw conveyor. In addition to extruding materials, screws also need to extrude, stir, and shear plastics to plasticize them. Under the premise of constant screw speed, screws with large diameter and large groove have inferior mixing and shearing effects on materials compared to screws with small diameter. Therefore, our company has designed a high-yield and energy-saving ABS extruder, which has been used by manufacturers and favored by customers.

　　Sanitary ware board: Made of PMMA-ABS co extruded composite, it retains the surface rigidity and gloss of acrylic board, while also taking into account the impact resistance of ABS board. It has good formability, high and low temperature resistance, wear resistance, and excellent mechanical processing performance. Used for bathroom products such as bathtubs, shower rooms, steam rooms, and washbasins.

　　Refrigerator board: divided into ABS board, ABS fluorine free board, ABS anti jun board, HIPS board, HIPS high gloss composite board, HIPS composite board. Has low temperature toughness, impact resistance, chemical stability and other properties. Mainly used for refrigerator and freezer door linings, inner compartments, drawers, water trays, water dispensers, etc.

　　ABS car (luggage) board: including leather grain board, matte leather grain board, flame-retardant leather grain board, etc. Has good thermoplasticity, flame retardancy, and impact resistance.

　　Usage: Car and bus roof, dashboard; Seat backrest, door panel, window frame, motorcycle shell; Various luggage such as suitcases, suitcases, and leisure bags.

　　Main technical parameters of standard models for sanitary ware boards and refrigerator board lines

　　Model JW-120/65-2200 JW-120/60/45-1800

　　Applicable raw materials ABS, PMMA ABS, PS, HIPS

　　Extruder specifications: ? 120/38, ? 70/35, ? 60/35, ? 120/38, ? 60/35, ? 45/35

　　Co extruded layered form A/B/C/B/A A/B/C

　　Product width 2100mm 1700mm

　　Product thickness 2-8mm 1-6mm

　　Extrusion yield 600Kg/h 550Kg/h

　　Product application areas

　　ABS products

　　Refrigerator board: mainly used for refrigerator freezer door, inner liner, drawers, water collection tray, water dispenser, etc.

　　Sanitary ware board: used for bathroom products such as bathtubs, shower rooms, steam rooms, and washbasins.

　　Advertising board: mainly used for: directional signs, chest signs, mechanical signs, advertising decoration, interior decoration, etc.

　　Luggage board: mainly used for various luggage such as suitcases, suitcases, leisure bags, etc.

　　Automotive panels: car roof, dashboard; Seat backrest, door panel, window frame; The outer shell of motorcycles, beach bikes, scooters, golf carts, etc.
