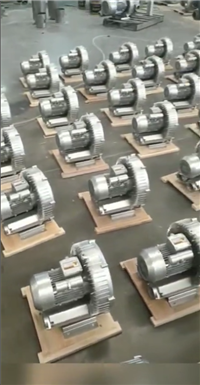

FT-15 11kw low-noise medium pressure explosion-proof blower pipeline conveying fan

Description :

　　Explosion proof fan structure;

　　Rotor: composed of shaft, impeller, bearing, synchronous gear, coupling, shaft sleeve, etc.

　　Impeller: Adopting a gradually opening linear surface for high volume utilization.

　　Bearing: 3000 type double row radial spherical roller bearings are selected as the positioning end near the coupling end. 32000 type single row radial short cylindrical roller bearings are selected as the free end near the gear end to adapt to the axial displacement of the rotor during thermal expansion.

　　Synchronous gear: composed of a ring gear and a hub, making it easy to adjust the impeller clearance.

　　Body: Composed of a casing and left and right wall panels. The left and right wall panels, as well as the bearing seats and sealing parts installed inside the left and right wall panels, can be interchangeable.

　　Base: Both small and medium-sized fans are equipped with a common base, while large fans are only equipped with a fan base for easy installation and debugging.

　　Lubrication: The gears use immersion lubrication, and the bearings use splash lubrication. Good lubrication effect, safe and reliable.

　　Transmission mode: mainly through direct coupling of couplings. If performance specifications require it, the method of variable speed with triangular pulleys can also be chosen. Elastic couplings are selected for the coupling, which can alleviate impact and compensate for a small amount of axis deviation. Large flow fans can also be driven by steam turbines or other types of motors, in addition to electric motors
