Description :

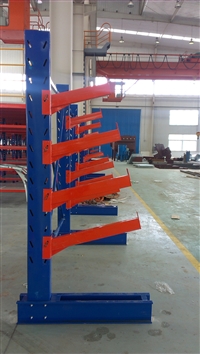

　　Characteristics of cantilever shelves:

　　1. Using square tube production: Cantilever shelves are made by selecting square tubes that meet the corresponding cantilever layer load requirements, cutting them into the required size, welding anti slip protective plates on one end, and welding U-shaped column connectors on the other end;

　　2. Made of C-shaped steel: Based on the corresponding cantilever layer load requirements, the specifications of the C-shaped steel are first selected for the cantilever rack. After selection, two pieces of C-shaped steel are welded together. After welding, an anti slip protective plate is welded on one end, and a U-shaped column connector is welded on the other end;

　　The cantilever shelf columns are connected to each other using connecting rods, which are generally made of rectangular tubes. To increase safety and stability, a flat iron back pull tab can be added to the connecting rod to tightly fix the column piece;

　　3. All cantilever shelf components are semi-finished products after production and will undergo a subsequent process of spray coating. Before spraying, perform shot blasting with a shot blasting machine to remove oil and rust, and then proceed with spraying. After completion, package and ship.

　　Cantilever shelving is an important type of shelving. Cantilever shelves are suitable for storing long materials, circular materials, boards, pipes, and irregular goods. Cantilever shelves can be single-sided or double-sided, and they have the characteristics of structural stability, good load-bearing capacity, and high space utilization. Cantilever shelving columns are often made of H-shaped steel or cold-rolled steel. Cantilevers are made of square tubes, cold-rolled steel or H-shaped steel, and the connection between the cantilever and the column is plug-in or bolted. The connection between the base and the column is bolted, and the base is made of cold-rolled steel or H-shaped steel.

　　Basic structure of cantilever shelf:

　　The column is made of two cold-rolled C-shaped profiles welded face to face. There are double row holes punched on the column with a pitch of 140 (50) mm, so the cantilever beam can be hung on it to adjust the height of each layer up and down. The length of the cantilever shelf can be freely matched, and customers can specify whether an end is required for the cantilever end. The end is divided into welded and plug-in types.

　　Cantilever shelves are commonly used in the mechanical manufacturing industry and building materials supermarkets. After adding shelves, it is particularly suitable for warehouses with small space and low height. It is easy to manage, has a wide view, and has a higher utilization rate than ordinary shelves. Cantilever shelves are made by installing external cantilevers on traditional shelf pillars, and are a type of long shelf.
